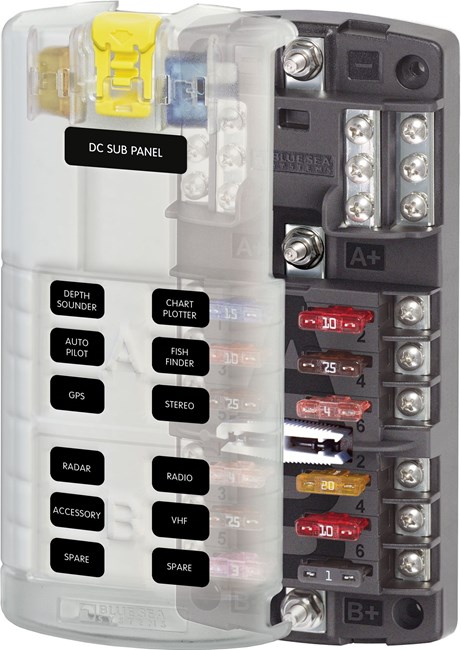

Blue Sea 5032 12 Circuit Split Bus Fuse Block with Ground and Cover

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #10-32 stud. Split design, 2 isolated groups of 6 circuits. 100A max per block, 30A max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. Fuses not included. Read Full Description

$68.99

Add a Fuse Puller/Extractor +$5.99
Quick View

Add a sheet of printable & writable circuit identifying labels +$3.99
Quick View

Qty:

Availability: In Stock

SKU: 5032-BSS

GTIN: 632085050320

Be the first to review this product

Provides two isolated groups of six ATO/ATC circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Positive distribution bus with #8-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation
Incorporates an easy to open push button latch providing easy access to fuses
Storage for two spare fuses, and recesses for labeled circuit identification
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATO and ATC fast acting blade fuses
Voltage Maximum Operating 32V DC
Amperage Maximum Operating (per circuit) 30 Amps
Amperage Maximum Operating (per block) 100 Amps
Screw Terminal #8-32 Screws with captive star lock washer
Mounting #8 Screw (M4)
Fuses sold separately. Labels not included

Environmental & Legislation

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
