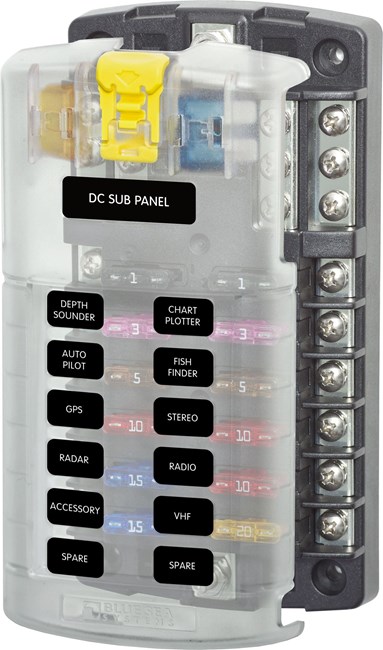

Picture of Blue Sea 5026 12 Circuit Fuse Block with Cover and Negative Bus
Blue Sea 5026 12 Circuit Fuse Block with Cover and Negative Bus
  • $46.99
  • In Stock
  • SKU: 5026-BSS

Blue Sea 5026 12 Circuit Fuse Block with Cover and Negative Bus

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #8-32 stud. 12 circuit design. 100 Amp max per block, 30 Amp max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. Same as 5030 but includes cover. Read Full Description
$46.99
Availability: In Stock
SKU: 5026-BSS
GTIN: 632085050269
  • Positive distribution bus with #8-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation
  • Incorporates an easy to open push button latch providing easy access to fuses
  • Storage for two spare fuses, and recesses for labeled circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Voltage Maximum Operating 32V DC
  • Amperage Maximum Operating (per circuit) 30 Amps
  • Amperage Maximum Operating (per block) 100 Amps
  • Screw Terminal #8-32 Screws with captive star lock washer
  • Mounting #8 Screw (M4)
