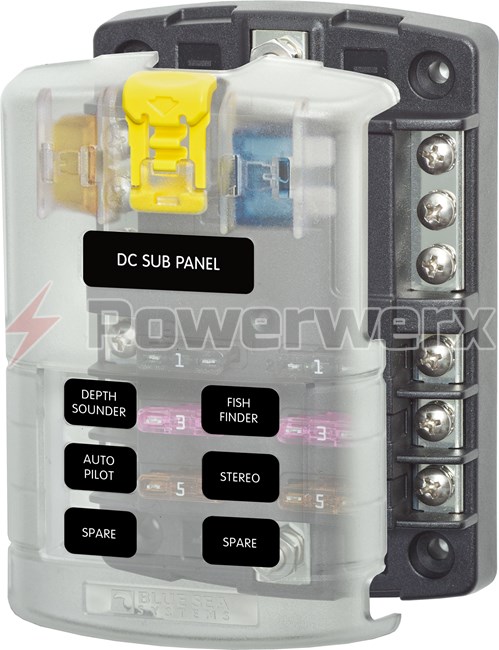

Picture of Blue Sea 5025 6 Circuit Blade Fuse Block with Cover and Negative Bus
Blue Sea 5025 6 Circuit Blade Fuse Block with Cover and Negative Bus
  • $34.99
  • Out of stock
  • SKU: 5025-BSS

Blue Sea 5025 6 Circuit Blade Fuse Block with Cover and Negative Bus

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #10-32 stud. 6 circuit design. 100 Amp max per block, 30 Amp max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. 3.32"W x 4.9"H x 1.52"D. Fuses not included. Read Full Description
Availability: Out of stock
SKU: 5025-BSS
GTIN: 632085050252
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation
  • Incorporates an easy to open push button latch providing easy access to fuses
  • Storage for two spare fuses, and recesses for labeled circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Voltage Maximum Operating 32V DC
  • Amperage Maximum Operating (per circuit) 30 Amps
  • Amperage Maximum Operating (per block) 100 Amps
  • Screw Terminal #8-32 Screws with captive star lock washer
  • Mounting #8 Screw (M4)
  • Fuses sold separately. Labels not included
Environmental & Legislation

WARNING: Cancer and Reproductive Harm -

Customer Reviews
Great aux fuse block for vehicles By
This is a great fuse block I've used in many vehicles.  I like the fact that it has a negative bus bar.  It accepts a few different sizes of fuses which is useful as well.  I wish the cover had a slightly better design.
