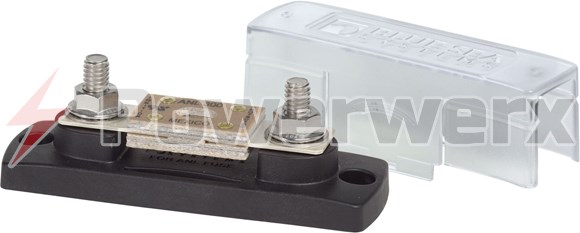

Picture of Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300A
Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300A
  • $19.99
  • In Stock
  • SKU: BS5005

Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300A

For use with all ANL type fuses. Swing out design allows replacement of the fuse without removing fasteners. Use on systems up to 32 Volts DC. Requires optional ANL fuses which are sold separately: Available ANL fuse sizes are: BS5122 (50A), BS5125 (100A), BS5129 (200A), BS5133 (300A). Read Full Description
$19.99
Availability: In Stock
SKU: BS5005
Be the first to review this product
  • Safety Fuse Block provides high current protection with clear cover
  • Cover breakouts allow wire access in any direction
  • Maximum Cable Size: 2/0 AWG
  • Amperage: 40A - 300A (ANL fuses sold separately)
  • Optional ANL fuses available: BS5122 (50A), BS5125 (100A), BS5129 (200A), BS5133 (300A)
  • Maximum Voltage: 32V DC
  • Terminal Stud Size: 5/16" – 18 (M8)
  • Fuse Mounting Blocks: Tin-Plated Copper
  • Size: 4.50" x 1.50" x 1.65" (with clear cover on)
  • Weight: 0.35 lbs
