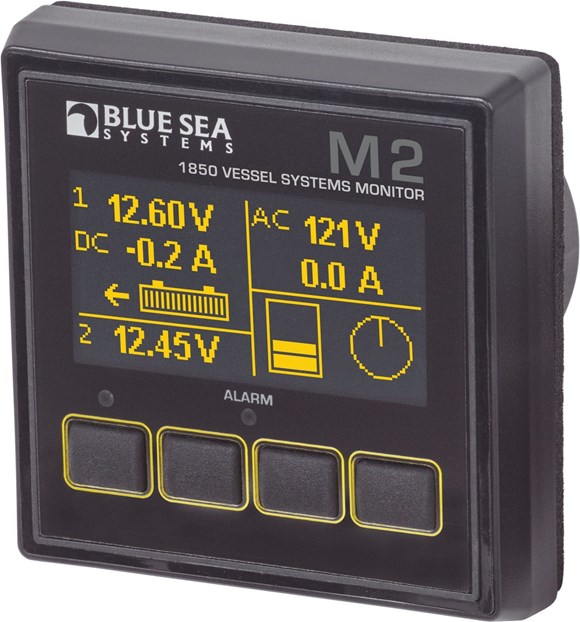

Blue Sea 1850 M2 Vessel Systems Monitor

Performs comprehensive monitoring of four critical systems (AC, DC, Tank & Bilge) in one compact organic OLED digital monitor. Also accurately measures and monitors the state-of-charge of your batteries. Read Full Description

$373.99

Qty:

Availability: In Stock

SKU: 1850-BSS

GTIN: 632085018504

Be the first to review this product

DC Monitoring System: Monitors up to two batteries. Monitors DC volts, state of charge, current for one battery bank and voltage for another battery bank. AC Monitoring System: VSM monitors single AC voltage, current and frequency. Alarms include high / low AC voltage, high current and low frequency. Bilge & Tank Monitoring.

Meter Monitors: Voltage / Current / Tank / Bilge
80dB Alarm Functions: (High current, High / Low Voltage)
Meter Design: Bright OLED Display, easy to read
Input DC Voltage: 7-70V DC
Input AC Voltage: 40-300V AC
DC Current Range: -500 – +500A DC
AC Current Range: 0-150A AC
AC Frequency Range: 40-90 Hz
Minimum Current Draw: 18.8mA @ 12V, backlit off (35mA @ 12V, backlit on)
Voltage Accuracy: +/- 1%
Rating: IP67, NEMA 2000
Meter Dimensions: 3.25"W x 3.25"H x 2.37"D
OLED Meter Display size: 2.17"W x 1.10"W
Warranty: 5 Years
