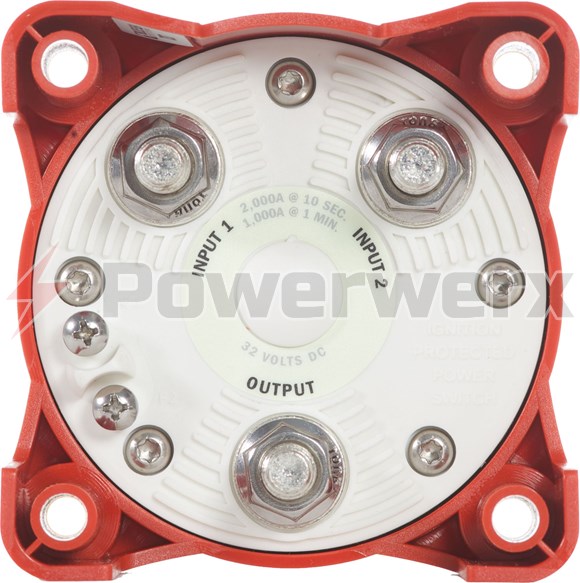

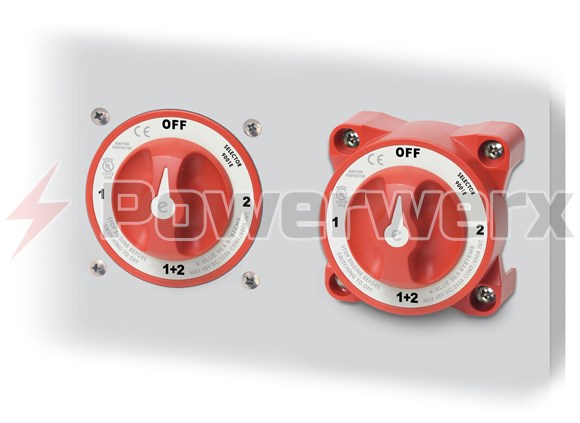

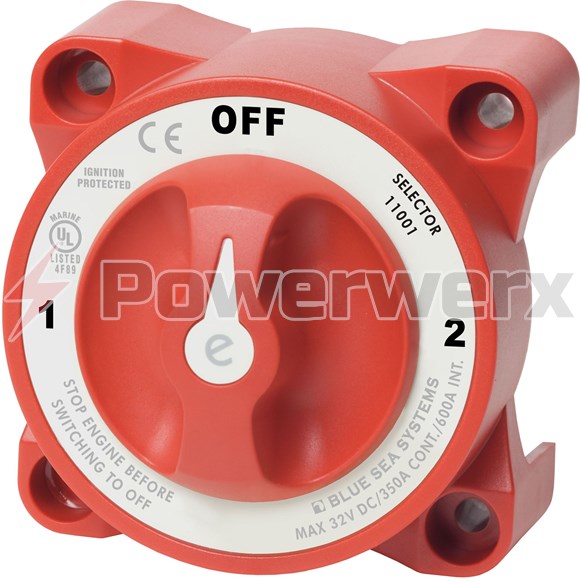

Picture of Blue Sea 11001 e-Series Selector 3 Position Battery Switch with AFD
Blue Sea 11001 e-Series Selector 3 Position Battery Switch with AFD
  • $43.99
  • Out of stock
  • SKU: BS11001

Blue Sea 11001 e-Series Selector 3 Position Battery Switch with AFD

e-Series Battery Switch Dual Circuit Selector. Dual Battery Selectable Operation (Batt 1, Batt 2 or OFF). Includes (AFD) Alternator Field Disconnect. 11001 Battery switch is rated up to 600 Amps Intermittent rating. Read Full Description
$43.99
Availability: Out of stock
SKU: BS11001
GTIN: 632085110017

11001 e-Series Battery Switches isolated battery banks to all loads (BATT 1 or BATT 2 or OFF). Includes Alternator Field Disconnect. Ideal for marine, RV and emergency vehicle applications. Manufactured with non-corrosive marine grade metals. Molded in durable reinforced polycarbonate. Safe for installation aboard gasoline powered vehicles and boats. Case design allows for surface or rear panel mounting.

Features

  • Dual Battery User Selectable Operation (Battery 1, Battery 2 or OFF)
  • Safe to use on gas powered vehicles, RV and boats
  • Can be mounted in engine compartments and marine environments

Specifications

  • Amp Rating: 350 Continuous Rating (600A intermittent/5 min)
  • Amp Cranking Rating: 1200A (up to 30 seconds)
  • Switch Type: 3 Position (Dual circuit B1 ON, B2 ON, OFF)
  • Voltage: 12~32 VDC
  • Battery Inputs: 2
  • Terminal Stud Size: 3/8”-16 (M10)
  • Size: 3.85" L x 3.85" W x 1.1" H
  • Weight: 1.33 lbs
