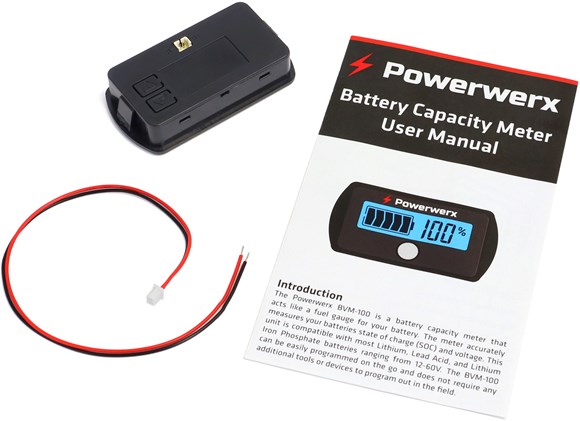

Picture of Powerwerx Battery Capacity Voltage Monitor
Powerwerx Battery Capacity Voltage Monitor
  • $34.99
  • In Stock
  • SKU: BVM-100

Powerwerx Battery Capacity Voltage Monitor

The Powerwerx BVM-100 is a voltage-based battery capacity meter that acts like a fuel gauge for your battery. The meter accurately measures your batteries remaining capacity and voltage. Compatible with most Lithium, Lead Acid, and Lithium Iron Phosphate batteries ranging from 12-60V. Read Full Description
$34.99
Availability: In Stock
SKU: BVM-100
GTIN: 840128919811
The BVM-100 is ideal for both mobile and portable applications including battery boxes and auxiliary batteries. The meter displays a graphic battery capacity gauge and can also display battery voltage and percentage of remaining battery capacity. With multiple function and display settings the user can choose from several different options to program the meter to their needs.

Multiple Battery Chemistries

The BVM-100 accurately measures Lead Acid, Lithium Ion, and Lithium Iron Phosphate battery chemistries. Most battery capacity meters are only intended to be used with Lead Acid batteries and do not accurately measure Lithium and LFP chemistries.

Multiple Voltages and Cell Counts

Ranging from 6-69VDC, the BVM-100 can be used in multiple applications ranging from 12V-60V systems. The meter is also able to measure various Lithium and LFP batteries ranging from 2 cell all the way up to 19 cell battery configurations.

Custom Display Settings

Three user selectable display settings: Voltage only, Percentage only, and Voltage and Percentage. All 3 display settings will also have the battery capacity gauge.

Custom Mode Settings

Choice of four different mode setting: Constant On, Momentary On, On/Off, and Standby.

Tech Specs

Operating Voltage6-69 VDC
Standby Current (on)4.0-6.0mA
Standby Current (sleep)0.005m
Compatible Battery ChemistriesLithium, Lead Acid, and Lithium Iron Phosphate
Voltage Accuracy± 3-5%
Temperature Range14 to 140°F (-10 to 60 °C)
Dimensions (W x H x D)2.25 x 1.2 x 0.5 in (57 x 30 x 12.8mm)
Warranty6 Months
Customer Reviews
A must to see battery cell levels By
We utilized several of the PWRbox2 Portable Power Box units after the Maui Fires.  The Capacity Voltage Monitor display on the units were extremely useful.  Since we know that LiFePO4 batteries (from Bioenno Power) will provide a useful voltage until they are down to 10%, knowing the actual capacity of the charged cells is most important for us.   In fact, I just ordered a few more of their meters to upgrade our older Power Box units.
Was this review helpful? Yes No (0/0)
Fantastic meter for Bioenno power batteries By
Used this with the BLF-1220A and works great. Simple to use
Was this review helpful? Yes No (0/1)
Nice & simple - could be better By
I bought a PWRbox2 with this little battery meter integrated. Works as expected, which in and of itself is great. I'm sure I will use it often while deploying my portable Winlink RMS Gateway. However, from a usability perspective, accessing the up/down buttons requires opening the PWRbox2's top, which is definitely not practical. Since this device is built for mounting into a panel or face plate, from an engineering perspective, those buttons should be on the face, not behind where in some cases they would never be accessible. For the $35usd price tag, there are other options with all the buttons on the face. Don't get me wrong, it is a fine meter. If the buttons were on the face, it would be a high 4 rating or perhaps a 5.
Was this review helpful? Yes No (5/2)
