Automatic Backup Power Selector for Redundancy, 70 Amps

The BPS702 (Backup Power Selector) provides a simple, solid state solution to add battery back-up to your base station power supply. This unit features two DC power inputs and a single output to your critical electronics. The BPS702 will take the highest voltage input source (like a power supply) and pass that through to the units output. If the #1 input source ever fails or you have a power failure, the BPS will automatically switch to the second input (usually a battery) for seamless redundant operation.

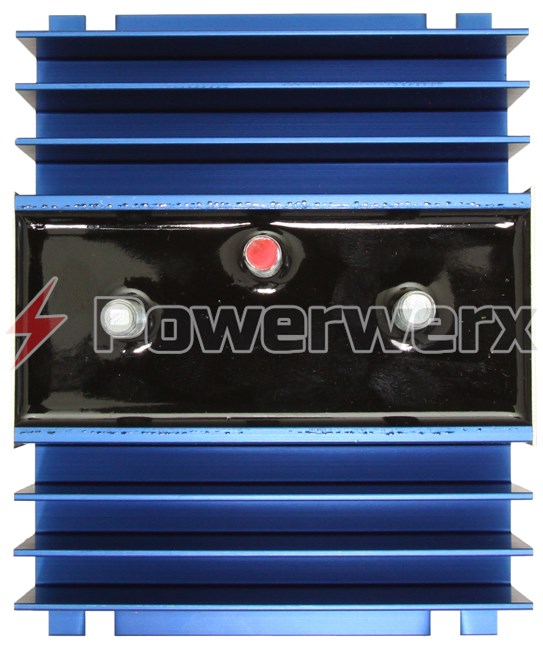

The BPS702 may be used on 12-48 VDC systems, provided both input power sources are the same nominal voltages (+/- 6 VDC). The BPS702 is rated for loads up to 70 amps on 12-48 VDC systems. This unit includes rugged construction with heavy duty wiring studs and potted epoxy components in an anodized aluminum case.

Typical Redundant Installations

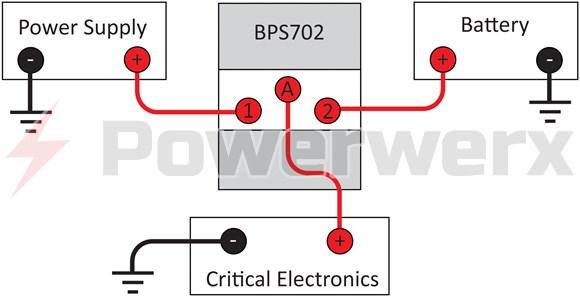

Option 1
Terminal #1 = Power Supply (+) IN
Terminal #2 = Battery (+) IN
Terminal "A" = Output to Electronics (+)

Option 2
Terminal #1 = Power Supply #1 (+) IN
Terminal #2 = Power Supply #2 (+) IN
Terminal "A" = Output to Electronics (+)

Option 3
Terminal #1 = Battery "1" (+) IN
Terminal #2 = Battery "2" (+) IN
Terminal "A" = Output to Electronics (+)

Specifications
Model: BPS702
Input Voltage Range: 6 - 50 VDC
Maximum Load Current: 70 Amps @ 12 VDC
Connections: "+" Positive (all connections)
Operating Temperature: -40 C to +80 C
Voltage Drop: 0.35 VDC @ 10A, 0.5 VDC @ 20A, 0.6 VDC @ 30A
Dimensions: 3.25" x 4.5" x 3"
Warranty: 1 Year
