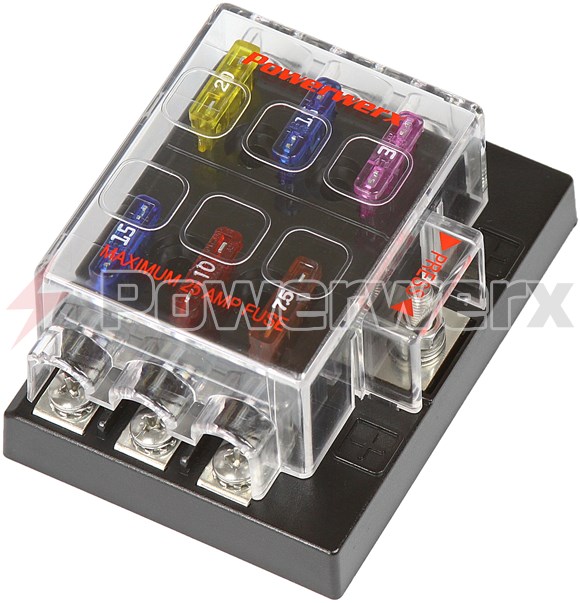

Picture of Powerwerx 6 Circuit ATC/ATO Blade Fuse Block with Cover
Powerwerx 6 Circuit ATC/ATO Blade Fuse Block with Cover
  • $19.99
  • In Stock
  • SKU: FB-06

Powerwerx 6 Circuit ATC/ATO Blade Fuse Block with Cover

Provides 6 individually fused outputs. Fits standard ATC/ATO blade fuses. Positive distribution bus with #10-32 stud. 25A max per output, 100A max per block. Tin plated terminals. Polycarbonate construction is rugged and lightweight. Fuses not included. Read Full Description
$19.99
Availability: In Stock
SKU: FB-06
  • Our most compact 6 position fuse block
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Includes 20 pictographic labels of common circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATC and ATO fast acting blade fuses
  • Voltage Maximum Operating 32V DC
  • Amperage Maximum Operating (per circuit) 25 Amps
  • Amperage Maximum Operating (per block) 100 Amps
  • Stud Terminal #10-32 with hex nut, flat washer and lock washer included.
  • Four 5.5mm diameter mounting holes for #10 screws.
  • Polycarbonate base and cover material for rugged lightweight construction.
  • Measures only: 2.75”W x 3.7”H x 1.55”D.
  • Fuses sold separately.
