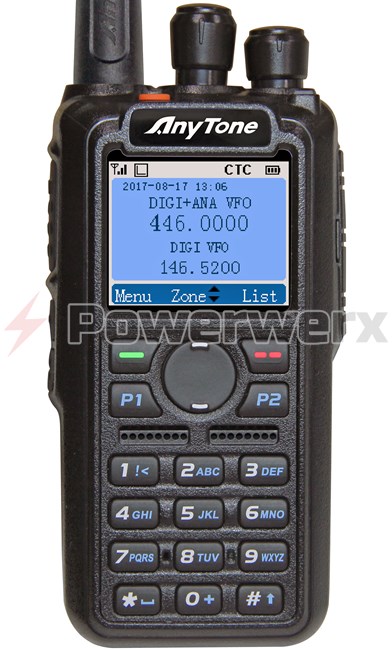

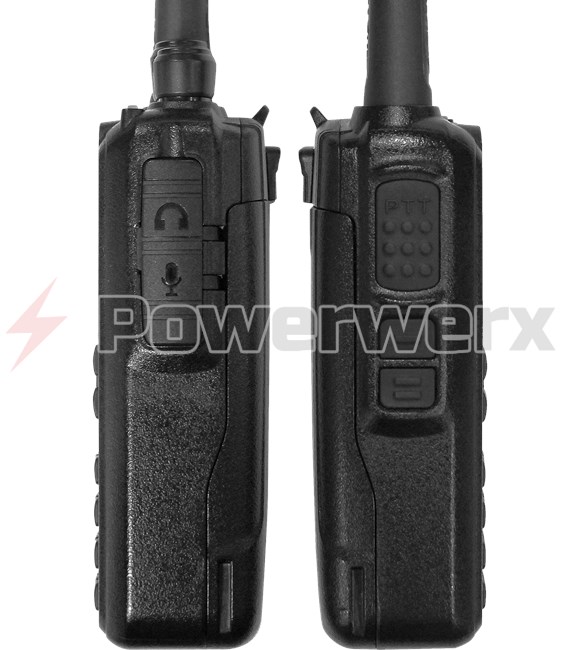

Picture of Anytone AT-D868UV Digital DMR Dual-band Handheld Commercial Radio
Anytone AT-D868UV Digital DMR Dual-band Handheld Commercial Radio
  • $159.99
  • In Stock
  • SKU: AT-D868UV

Anytone AT-D868UV Digital DMR Dual-band Handheld Commercial Radio

VHF/UHF Dual-band Digital/Analog Part 90 DMR commercial transceiver with 1.77 inch color TFT display. Ideal for Fire, Search & Rescue, EMS, Police, Sheriff, Forestry and Security operations. 4,000 Channels with 10,000 Talk Groups. Frequency coverage 140-174 / 400-480 MHz. Firmware v2.26. Includes USB Programming cable. Read Full Description
$159.99
$168.99
Availability: In Stock
SKU: AT-D868UV

VHF/UHF Dual Band

Monitor two bands at the same time (V+V, U+U & V+U).

Digital DMR and Analog

Features both DMR digital and analog modes on any channel.

High Power Output

6.0W, 4.0W, 2.5W, 1.0W selectable TX power output.

2 & 5 Tone Paging

Includes built-in 2 Tone and 5 Tone Paging feature

Programming Cable

Includes USB Programming Cable, free software available for download.

Color TFT Display

1.77 inch color TFT screen for Day or Night operation with Dual or Single Channel display.

Tech Specs

Memory Channels4,000 channels
DMR Talk Groups10,000
Digital Contacts150,000 (complete worldwide database from DMR-MARC)
Power Levels4 programmable power levels: 6/4/2.5/1 Watt Transmit Power Levels.
Zones250 zones, up to 250 channels per zone.
Display1.77 inch color TFT Screen with selectable dual channel or single channel display.
BatteryOperate 35+ hours between charges with the supplied 3150 mAh lithium ion battery in the power saver mode.
Bandwidth12.5 / 25.0 kHz Analog, and 12.5 kHz DMR
Import/ExportEnhanced CPS allows direct input and export of channels, digital IDs and talkgroups.
IndustriesIdeal for fire, search & rescue, EMS, police, sheriff, forestry, security patrols, business communications, schools, universities, and other organizations that have FCC licensed frequencies.
DMR CompatibilitySupports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology.
Amateur RadioAlso operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database.

Programmable

FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable.
Speaker Connection2-pin style Kenwood/Wouxun type earphone and speaker mic connection for a variety of accessories.
Quiet TonesCTCSS/DCS tone squelch with split tone and custom tone capability.
Frequency Range136-174 / 400-480 MHz RX/TX
Package IncludesDual-band VHF/UHF Radio, 3150 mAh extended life lithium ion battery, desk charger w/ AC adapter, Dual-band antenna, belt clip, free USB Programming cable and downloadable software, user manual.
CertificationsFCC Part 90 Certified, FCC ID: T4KD868UV
Firmware VersionFirmware v2.26 is now available
Customer Reviews
Why the hate towards the software By
I suppose if you have never used Motorola RSS, Motorola CPS, or any of the BK software this might be tough to learn.  I've been screwing around with that stuff for years.  APX is the latest, greatest and it's just awful.  This software is a breeze, nothing is hidden.

Radio's nice too.
Was this review helpful? Yes No (2/1)
Got a lot of pluses but it has some negatives too By
I have now had this radio for a few months.  It is my first digital mode radio.
Pros:  price, support from Powerwerx (thanks David) accessories, has frequent updates in firmware,  does both Analog and Digital holds a lot of data and has a recorder.
Cons: must know your software/firmware uploads and must match versions., has a miserable 'ticking" due to a clock issue in analog,  poor display in the sun (this could be fixed in software with a black background.
Was this review helpful? Yes No (1/0)
Best of the Chinese DMRs By
The guy who couldn't make it interface with his hotspot either doesn't know what he's doing or perhaps was using an old firmware because with the help of the local DMR guru that got me into it, this radio is just awesome.  This is his favorite DMR radio so far, incidentally, though he says the Motorolas outperform it (no surprise at many times the price!).

I can't speak for the programming software because he made the code plug, but he likes it, certainly over the MD-380's.  That said, I, being a ham, don't like code plugs in general and prefer more ordinary non-user-specific programming like you have in D-STAR and FM with CHIRP, RT, etc.

Likewise, there is only one hardware version and it comes with GPS.  You have to turn it on in the settings and make sure the stock antenna or the Motorola duck with GPS receive is attached since it apparently receives GPS through the duck and a regular one I'm guessing will kill the signal.

Anyway, to drive the point home, this radio outperforms the MD-380 with my SharkRF Openspot upstairs in the middle of the building.  They make a wonderful pairing!  The DMR guy also has a Chinaspot (ZUMSpot clone) and it works great with them as well.

You won't be sorry buying this radio!
Was this review helpful? Yes No (6/0)
Great Radio By
Great Radio !

This model comes without the GPS option.

Fred
Was this review helpful? Yes No (5/4)
Meh... By
Great Analog Radio with the 6 Watt transmit.  I have been completely unsuccessful in programming the radio for digital modes.  No real support to explain this process.   I am very disappointed and will only keep the radio for its analog capabilities.   These radios are too complex to leave it to download a plug-in and off you go.  I have tens of hours of trying to program the radio to use my blue DV.  The simple simplex operation should not be this difficult.  Consequently, I will rate this as a  low rating until it is capable of interfacing EASILY to hotspots.
Was this review helpful? Yes No (9/11)
Software By
Very nice radio but programing software needs a lot of work.
Thanks Cap
Was this review helpful? Yes No (5/7)
Buy This Radio By
I have had several DMR radios.  This by far is the best.  from the rotary dial to the VFO to the best sounding audio i have heard from a dmr radio.
The software is not the greatest but that is not enough for me to give a 4 star rate.  Anytone is fast to deal with updates as needed.
Was this review helpful? Yes No (14/2)
Great radio! By
This radio works great. Very good audio. I really like the VFO mode. Rx and tx perform well.
Was this review helpful? Yes No (18/3)
Great Radio - programming: Grrrrr! By
This is an outstanding radio,  great features,  heads above the others available.   BUT building an extensive Codeplug is a royal PAIN!  The software needs some work.
Was this review helpful? Yes No (17/3)
Features By
The software is a bear to deal with. Definitely not easy like the TYT MD-380 software. I really like the VFO/Channel knob. Unlike other radios that have up/down buttons.

The radio is AWESOME.
Was this review helpful? Yes No (24/2)
A Great Dualband DMR Radio (UHF/VHF) By
The radio works great both on Analog and DMR. The Dual band allows for monitoring both analog and dmr at the same time with the dual display. The switching between the two is fairly quick.

The DMR Audio from the speaker is loud and clear along with reports of great TX Audio.

This is a must have radio for those looking for a dual band HT radio which does both Analog and DMR on VHF/UHF.
Was this review helpful? Yes No (61/4)
