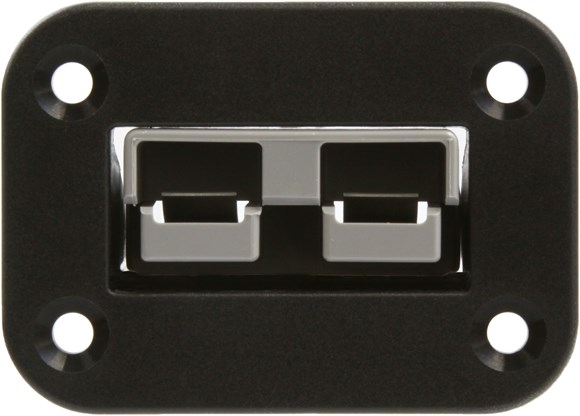

Picture of Powerwerx PanelPlateSB1 for Anderson SB50 Series Connectors
Powerwerx PanelPlateSB1 for Anderson SB50 Series Connectors
  • $9.99
  • In Stock
  • SKU: PanelPlateSB1

Powerwerx PanelPlateSB1 for Anderson SB50 Series Connectors

Anderson Power SB50 Series Connector flush mounting to your dashboard, panel or chassis. Ideal for fixed mounted application for Anderson Power SB50 series connectors. Includes (1) Gray SB50 housing, (2) #8 gauge contacts, mounting plate and hardware. Can be mounted in a vertical or horizontal position. Read Full Description
$9.99
Availability: In Stock
SKU: PanelPlateSB1
GTIN: 840128906002
  • Compatibility: Mounting Plate designed for Anderson Power SB50 Series connector
  • Maximum Voltage 600V AC or DC (for SB50 connector)
  • Maximum Amperage Up to 120A maximum, 50A continuous (for SB50 connector)
  • Rear Housing Depth 1-3/4" (not including wiring)

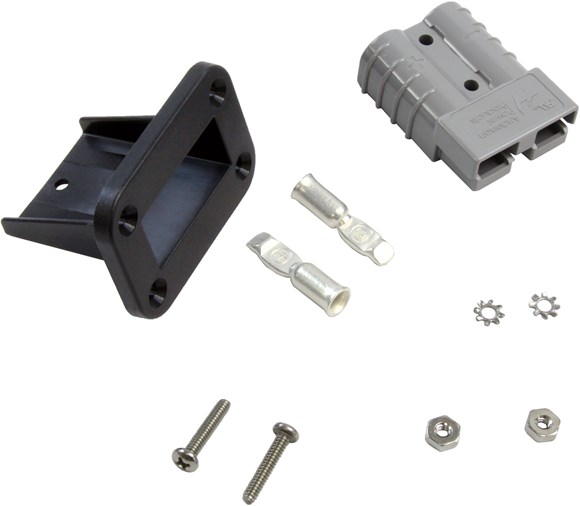

  • Includes: (1) Black plastic Mounting Plate, (1) Anderson SB50 Gray Housing, (2) #8 gauge contacts and (2) SB50 mounting bolts, nuts and lock washers.
  • Customers may purchase alternate colored SB50 housings and change connector colors as well as different contacts sizes as needed.
  • Optional: PLUG-SB50 Rigid Protective Plug/Cover with Lanyard.
