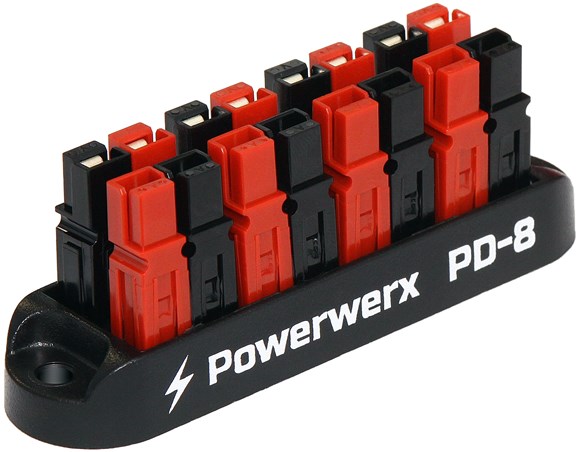

Picture of 8 Position Power Distribution Block for 15/30/45A Powerpole Connectors
8 Position Power Distribution Block for 15/30/45A Powerpole Connectors
  • $43.99
  • In Stock
  • SKU: PD-8

8 Position Power Distribution Block for 15/30/45A Powerpole Connectors

Easy to use 8 position power distribution block for 15/30/45A Powerpole connectors. Innovative design allows any position to be used as a DC power Input or Output as they are all connected together. In addition, each position can use the optional PCLIP retention clips for secure operation. Thick copper bus bar construction. Mountable for permanent installations. Rated at 45A. Read Full Description
$43.99
Availability: In Stock
SKU: PD-8
GTIN: 840128900017
Easy to use 8 position power distribution block for 15/30/45 amp Powerpole connectors. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured by Powerwerx in the USA.

Very Low Loss Design

Thick copper bus bar construction with heavy duty crimps provides negligible voltage loss and very low resistance, unlike competitor's products that use thin circuit boards traces with high voltage loss.

Retention Clips

New innovative design allows each Powerpole connection to use retention clips for secure operation. Prevents unintentional disconnection in any environment.

Mounting Holes

Mounting holes are provided for permanent, secure mounting on any installation.

Anderson Powerpole Connectors

Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.

High Current Capacity

Unique copper heavy duty bus bar construction provides reliable, safe up to 45 amp continuous operation. Any connection can be an input or output as they are all connected together.

Clean Installations

Simple design allows all wires to run in a single direction for cleaner and trouble free installation.

Tech Specs

Connections8 Powerpole Connectors (Any connection can be an input or output as they are all connected together)
CompatibilityMates with all 15, 30 & 45 amp Powerpole Connectors
Maximum Voltage58VDC
Maximum Amperage45A (continuous)
Mountable0.18" diameter mounting holes. Fits #8 screw.
ConstructionRugged ABS plastic base. Sealed internal bus bars.
Dimensions3.75"W x 0.97"D x 1.32"H (95.3mm x 24.6mm x 33.5mm)
Weight0.18 lb (0.08 kg)c
Customer Reviews
Fine piece of equipmet By
This block makes my home brew PP distro bus look like a grade school project, back for a second 8 position as well as a 4 position. A tip for those having problems unplugging the wrong connector, I just mark the input connector but the 49 cent retention clip does a great job of holding the connectors together.
Was this review helpful? Yes No (0/0)
I've been using Powerpoles for awhile now By
I have to agree with guest, there needs to be better instructions. Some is better than none. I'd like to see a side or end set of power poles specifically for the input from a power supply so that it's visually separate from the radio lead power poles. I've accidentally unplugged my power supply when I meant to unplug a radio. Funny how all my equipment shut off when I did that (not really funny).
I would like to see a new product, a heavy copper buss bar with a single high amperage powerpole connection to go to a ground outside and a bunch of single power poles of lower amperage rating to plug each piece of equipment into the ground buss bar. Along with that a series of wires with a matching power pole on one end and a lug on the other to mount to the equipment's ground lug screw.
Was this review helpful? Yes No (2/3)
Fantastic product By
I had a mix of VHF/UHF and HF radios and wanted something that can allow for easy expansion.   Connectors are solid on the unit and great with the equipment.
Was this review helpful? Yes No (1/0)
Good Device - Solidly Built - Ports a bit too tight By
If the ports weren't set too close to each other this device would have received 5 stars from me. As they are, I am having to remove the cover that I have been using on my power pole terminals so they could fit side-by-side when plugged in. The ports being so close to each other also makes unplugging them more challenging unless you want to unplug a few ports that are side-by-side.
Was this review helpful? Yes No (7/0)
Plugs don't come out By
I'm probably just dumb, but I kept trying to remove the plugs so i could attach them to power leads. Took me a while to realize they're fixed and that the plugs ARE the Jacks, due to the non-binary gender construction.  It would be nice if there were a minimal set of instructions that explained this for novices. I was about to start yanking on them with pliers. Other than that, it's a very solid piece of equipment and priced reasonably.
Was this review helpful? Yes No (9/31)
Plugs don't come out By
I'm probably just dumb, but I kept trying to remove the plugs so i could attach them to power leads. Took me a while to realize they're fixed and that the plugs ARE the Jacks, due to the non-binary gender construction.  It would be nice if there were a minimal set of instructions that explained this for novices. I was about to start yanking on them with pliers. Other than that, it's a very solid piece of equipment and priced reasonably.
Was this review helpful? Yes No (6/30)
Interoperability, ease of use, and more! By
During a recent install of an Amateur Radio transceiver into my car, I thought I would try Anderson Powerpoles.  I wanted to make my radio ready to go to Field Day, or any emergency activation, knowing that with Anderson Powerpoles my radio would plug right in with other power supplies in "Plug and Play" fashion.

When it became apparent that adding Powerpoles was a "snap" with the Power Werx Powerpole crimping tool (I've crimped 12 and not ruined ANY!), I decided to use Powerpoles on all my radios in my radio shack, too.

I bought the 8 Position Power Distribution Block to connect the gear in my shack and it went together like a dream!  All my gear is now connected together with no more jumble of power leads to the power supply... just one clean lead from the power supply to the Distribution Block and all the units simply plug in!

What could be easier?  Nothing, that I know of... Not only that, but any of my gear can be disconnected to go portable in an instant and brought back and reconnected in the same way!

My shack is cleaner and better organized now, and I can change things around simply by unplugging and replugging power leads in an instant!

Thank you, Power Werx and Anderson Powerpole!
Was this review helpful? Yes No (100/2)
